DANAHER TOLLO light duty actuators
Rugged and reliable..
– Max. force from 340 to 6800 N
– Speed from 12 to 75 mm/s
– DC or AC motor
-中风50、100、150、200、300年,马克斯。600 mm
– Acme or ball bearing screw

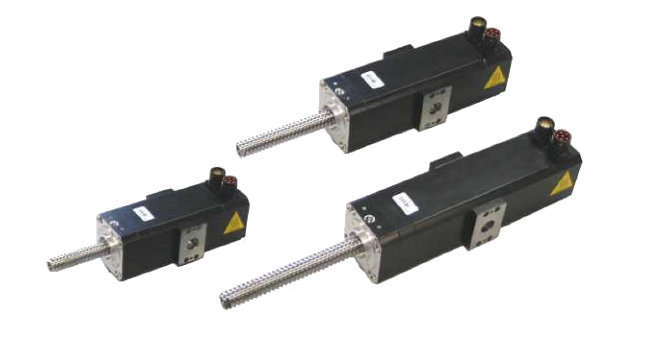

DANAHER TOLLO heavy duty industrial actuators
Speed and accuracy.
– Max. force till 40000 N
– Max. speed till 2 m/s
– Repeatability +/- 0,1 mm
– Ball screw drive

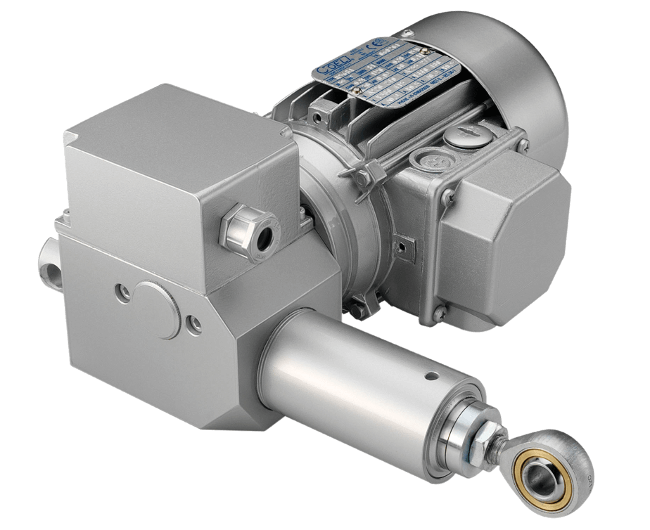

Electric linear actuator with orthogonal motorization, through worm screw – helical wheel, for industrial applications.
6 different sizes (ECO1, ECO2, ECO3, ECO25, ECO50, ECO100).
Numerous possibilities of force / speed combinations for each size.
Maximum Nominal Force equal to 100 kN.
Linear speed up to 78 mm / sec.
“T” version through the use of Trapezoidal Screw (self-locking).
“S” version using Spheres Recirculation Screw.
Drive by three-phase or single-phase DC / AC motor.
Duty Cycle 25% for ECO1, ECO2 and ECO3.
20% duty cycle for ECO25, ECO50 and ECO100.
Lubrication by grease.

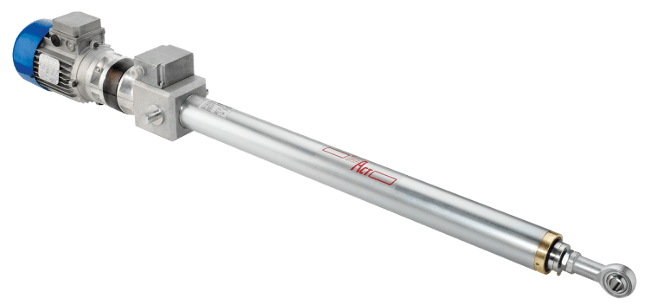

High efficiency electric linear actuator, with in-line motorization (with or without precision epicycloidal gear), for industrial applications.
5 different sizes (ECU0, ECU4, ECU5, ECU6, ECU7).
Numerous possibilities of force / speed combinations for each size.
Maximum Nominal Force equal to 60 kN.
Linear speed up to 466 mm / sec.
“T” version through the use of Trapezoidal Screw (self-locking).
“S” version through the use of Spheres Recirculation Screw.
Drive by AC three-phase / IP54 motor.
Duty Cycle 25%.
Lubrication by grease.
